Supported by LJV's independent automation design with R&D within well-equipped in-house laboratory, LJV brings high efficiency, flexibility, and benefits of lean management to customers through vertically integrated manufacturing capability and international quality system procedure.
With highly flexible integrated solutions, LJV is considered to be the ultimate one-stop shop solution provider for critical components with services from R&D, fully automated production, intelligent production cells to test validation.
Typical Specifications Rating: 10mA DC5V Operating temperature range: -40～+90℃ Length of shaft(mm): 20mm Rotational lifecycle: 30,000 cycles Attached switch: / Electrical Characteristics Rated voltage: 5v DC Rated current: 10mA Output：Incremental Resistive load: Max 10mA;Min 0.5mA Insulation resistance: 250V DC,100MΩ Min Dielectric strength: 300V AC,1minute Mechanical Characteristics Rotational angle: 360° Rotational torque: 100～400gf.cm Number of pulse/detent: 15P/30C Shaft push-pull strength: 10Kgf Min
Application Areas ▪ Automobile console ▪ White goods ▪ Audio equipment ▪ Amplifier
Typical Specifications Electrical Characteristics Impedance: 50Ω Frequency range: DC-6GHz Operating Voltage: 335 Volts rms Contact Current: 1A DC Max Center Contact Resistance: 5mΩ Max Outer Contact Resistance: 2.5mΩ Max Return Loss: 18 dB Min Insertion Loss: ≤0.1×√f(GHz)dB Insulation Resistance: 1GΩ Min Mechanical Characteristics Connector Durability: 25 cycle Min Retention Force Latch: 110 N Min Disengagement Force: 2 N Min Engagement Force: 25 N Max Engagement Force Waterproof: 45 N Max Envrionmental Characteristics Temperature Range: -40℃ to +105℃ Temperature/Humidity Cycling: USCAR-2, Paragraph 5.6.2 Vibration & Mechanical Shock: USCAR-2, Paragraph 5.4.6 Thermal Shock: USCAR-2, Paragraph 5.6.1 RoHS: RoHS Compliance
Application Areas ▪ Navigation ▪ Autonomous Driving ▪ Antenna, Blue Tooth ▪ Infotainment ▪ 360° Round View Camera ▪ Internet & Mobile Communication ▪ ADAS Description Plug, Right Angle
Application Areas：Car Electric Seat
Output: Current/Voltage Output Rated Current: 10A Rated Voltage: 12V Operating Force: 5.5±2N Operating Travel: 2.0±0.5mm Operating Temperature Range: -40℃ to 85℃
Application Areas: 360° Surround View Camera ADAS Multifuntional Antenna Autonomous Driving
Electrical Characteristics Impedance: 50Ω Frequency range: DC-15 GHz VSWR/RL: 3GHz 20dB / 6GHz 17 dB / 12 GHz 12 dB / 15 GHz 10 dB Operating Voltage: 335Volts rms Insulation Resistance: 100MΩ Min Dielectric Withstanding Voltage：500Volts rms Current: 1A Max Center Contact Resistance: 5mΩ Max Outer Contact Resistance: 5mΩ Max Mechanical Characteristics Connector Durability: 25 Cycles Min Engagement Force：60N Max Disengagement Force：5N Min Retention Force Latch：100N Min Envrionmental Characteristics Temperature Range：-40°C to +105°C Thermal Shock：-40°C to +85°C, 100cycles Vibration & Mechanical Shock：Random,5~10ms,35Gs,1/2sine Temperature/Humidity Cycling：40 Cycles, 8 Hrs/Cycle Coding Efficiency：40N Min .
Application Areas：Car Navigation, In-car Infotainment System
Typical Specifications Output: 4-direction indication with press switch and encoder rotational signal Number of pulse/detent: 15/360° Rotational lifecycle：30,000±200 cycles Rating：DC 5V 10mA Operating temperature range：-40℃ to 85℃ Handle length：3.5±0.5
Typical Specifications Rating: 10mA DC5V Operating temperature range: -40～+90℃ Length of shaft(mm): 20mm Rotational lifecycle: 30,000 cycles Attached switch: / Electrical Characteristics Rated voltage: 5v DC Rated current: 10mA Output：Incremental Resistive load: Max 10mA;Min 0.5mA Insulation resistance: 250V DC,100MΩ Min Dielectric strength: 300V AC,1minute Mechanical Characteristics Rotational angle: 360° Rotational torque: 100～400gf.cm Number of pulse/detent: 15P/30C Shaft push-pull strength: 10Kgf Min
Application Areas ▪ Automobile console ▪ White goods ▪ Audio equipment ▪ Amplifier

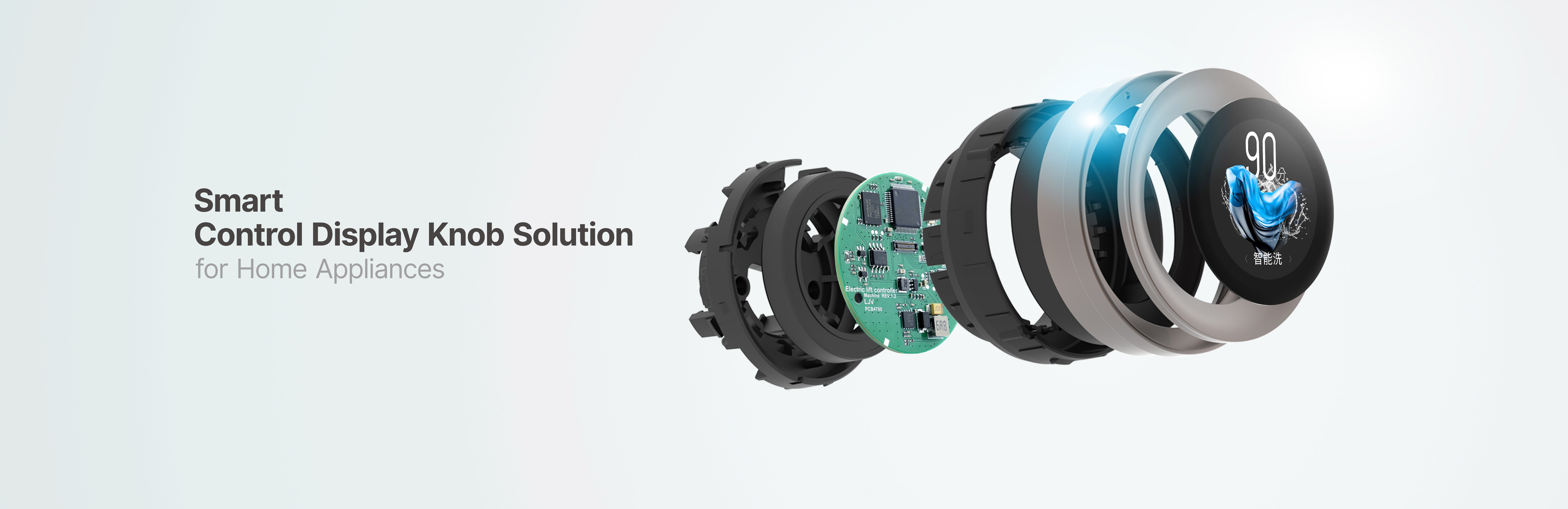

Typical Specifications Rating(max.)(Resistive Load): 100mA Rated Voltage: 3.3V Operating Temperature Range: -20℃ to +60℃ Diameter: 70mm Display Type: LED digital display Electrical Characteristics Insulation resistance: ≥200MΩ Dielectric strength: 500V/1min Output coding: Incremental Output pin-count: 6-pin Character display color: white+blue Output connection type: Pin connector Mechanical Characteristics Detent torque: 450±250gf.cm Number of detent: 14 Rotation angle: 360° Shaft wobble: ≤0.3mm Push-pull strength: ≥70N Endurance Characteristics Rotational life: 30000±200 cycles Environmental Characteristics Operating temperature range: -20℃ to +60℃ low temperature: -20℃ High temperature and high humidity: 60℃,90%RH Temperature cycling: -20℃ for 30min.to +60℃ for 30 min., 10 cycles Salt spray: 72h Vibration: 2h for 10-55-10Hz
Application Areas ▪ Home Appliance ▪ Consumer Electronics .
Application Areas: Telecommunication
Application Products：Optical Module Material：Zinc Alloys Roughness: Ra0.4 Min Wall-thickness:0.35mm Min No thimble
